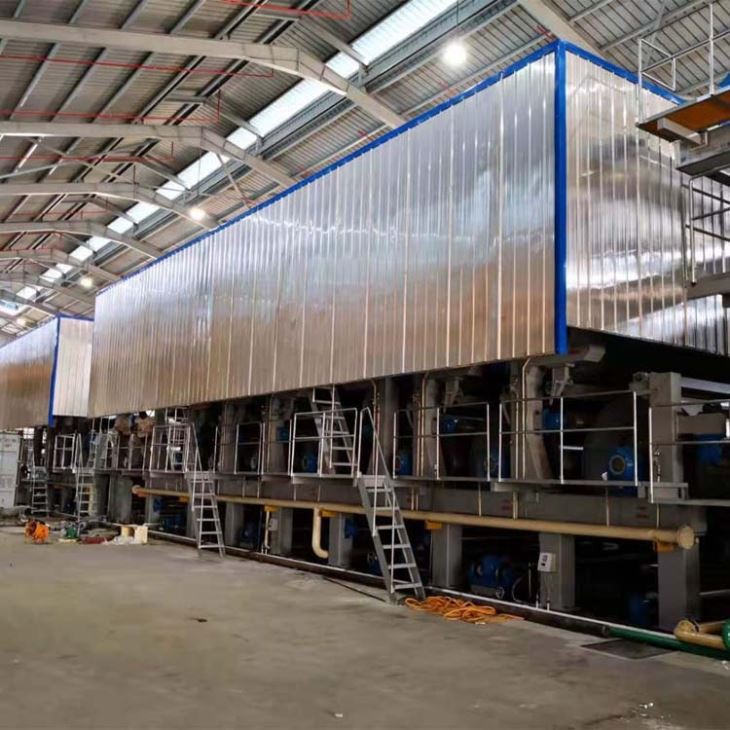

Testliner Paper Making Machine

Product Introduction

A Testliner Paper Making Machine usually requires two sets of pulping equipment lines. The bottom layer uses waste paper boxes to produce corrugated paper, while the upper layer uses pure pulp to produce kraft paper. The surface is smoother and easy to print. The machine type is mainly a double Fourdrinier paper machine or a cylinder mould paper machine. Depending on the machine capacity, the investment for our Testliner Paper Making Machine ranges from 100,000 to 1,000,000 US dollars.

Technical Parameters

1. Output paper：testliner paper

2. Output paper weight: 80-200gsm

3. Net paper width: 3300 mm

4. Capacity: 120T/D

5. Working speed: 100-200 m∕min

6. Design speed: 220m/min

7. Rail space: 4300mm

Use

Improves the physical strength of the paperboard and the appearance performance of the paper sheet, with a higher proportion of kraft wood pulp used in papermaking. Testliner paper is mainly used to make carton boxes.

Main Structure

Fourdrinier Section:
19.5m × 3600mm bottom Fourdrinier, 1 set
7m × 3600mm upper Fourdrinier, 1 set
Vacuum couch roll, 1 set
Forming table wrapped and headbox made of stainless steel

K-Press Section:
Upper K-press roll: Φ900 × 3700 × 4300mm natural marble roll, 1 set
Vacuum K-press roll: Φ850 × 3700 × 4300mm rubber roll, 1 set (roll body is stainless steel, rubber thickness is 22mm, hardness is "A" 95º ± 2)
Bottom K-press roll: Φ800 × 3700 × 4300mm rubber roll, 1 set (roll body is cast iron, rubber thickness is 22mm, hardness is "A" 93º ± 2)

Main Press Section:
Upper press roll: natural marble roll, 1 set
Bottom press roll: Φ1350 × 3700 × 4300mm rubber roll, 1 set (rubber thickness is 25mm, rubber hardness 93º ± 2)

Dryer Section:
Alloy dryer can, 28 sets (grouped as 16+10), with dry felt device, 26 blades, semi-closed dryer exhaust hood, 1 set

Calender Section:
Two-roll calender, 1 set (bottom roll Φ575mm)

Winding Section:
3200mm horizontal pneumatic winding machine, 1 set

Rewinding Section:
3200mm frame-style rewinder, 1 set

Sizing Machine:
1 set

Company Information

Our company ensures the supply of spare parts for the paper machine for a long time. We provide complete pulping equipment for the paper machine and are responsible for the design, installation, debugging, and training of technical personnel. Our engineering team trains and instructs your workers on how to operate the paper machine during installation. We will deliver the paper machine within 1-3 months according to the machine size.
